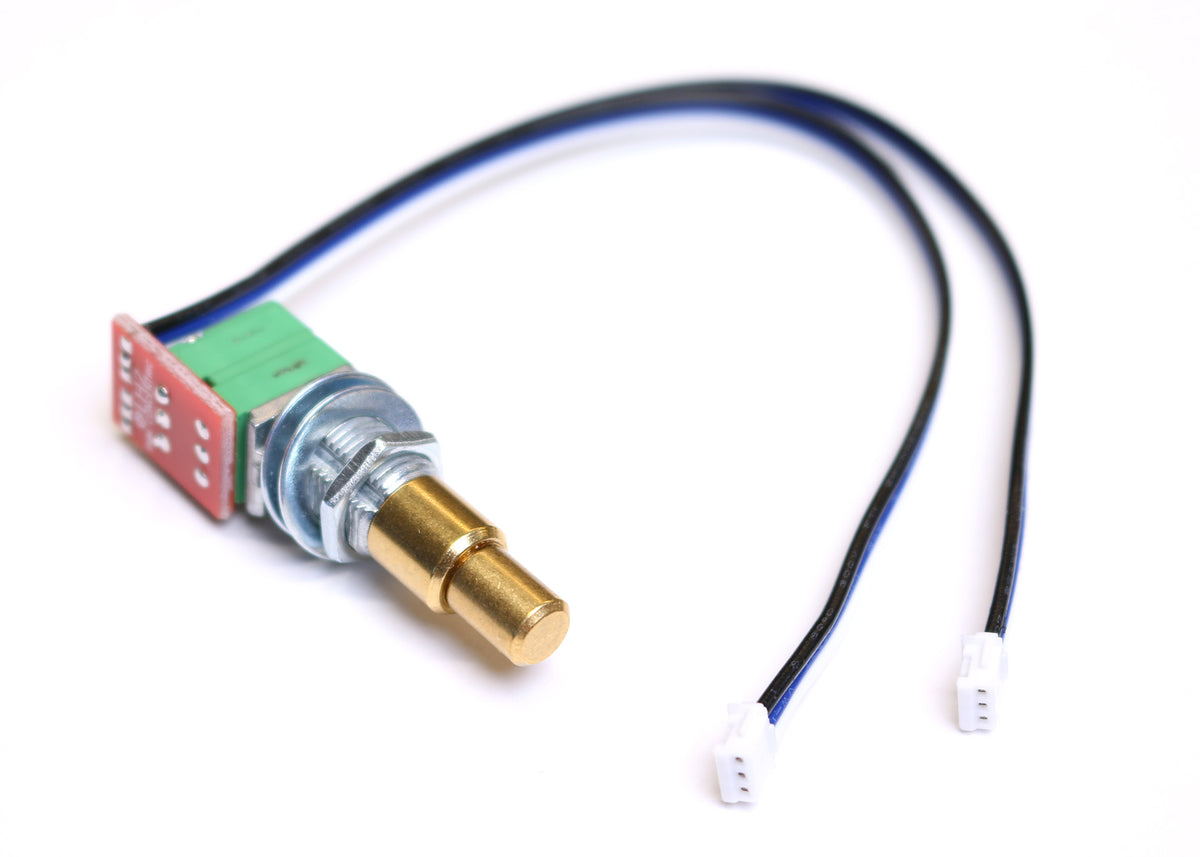

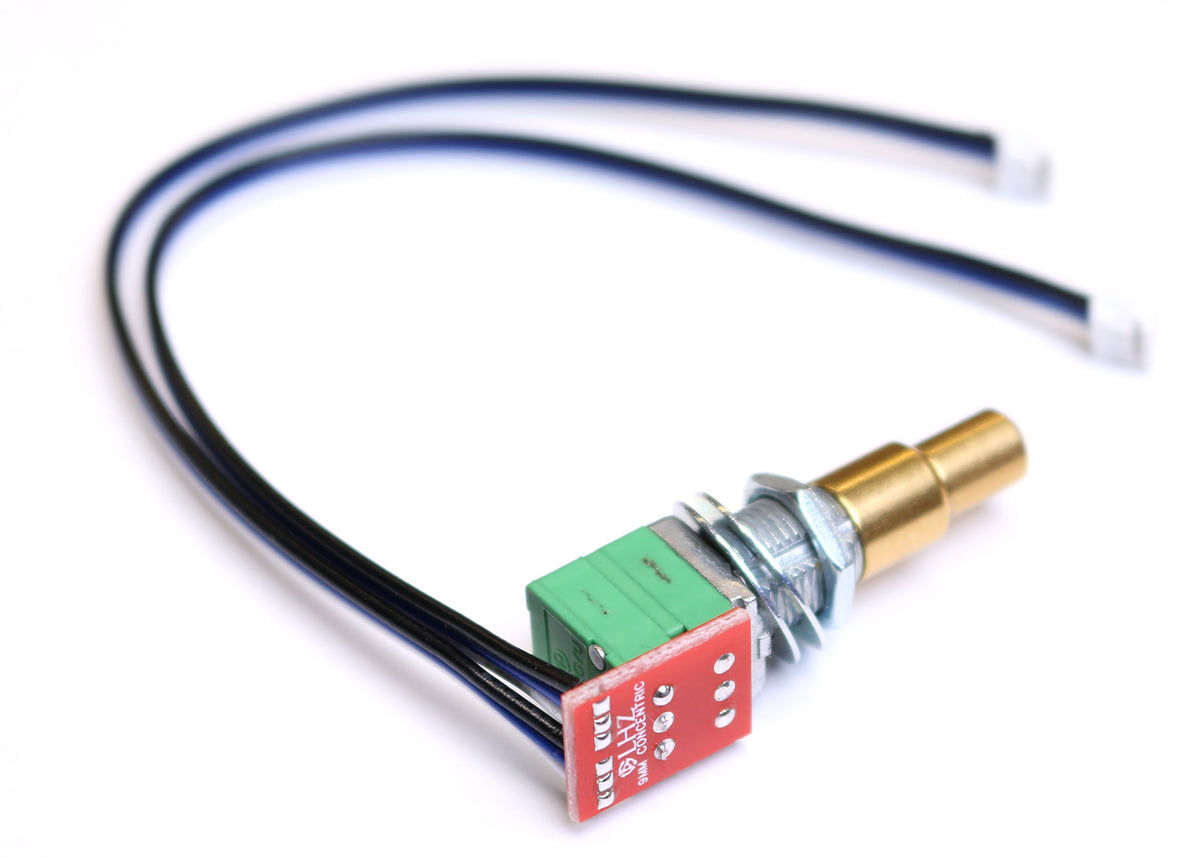

POT-016 One Concentric EQ Pot with JST Connector (Righthand)

The POT-016 is a concentric potentiometer wired to two miniature JST connectors that plug into the Bass and Treble JST connectors on an LHZ preamp.

This is a single concentric (aka "stacked") pot with two independent 100k Linear Taper (B100k) controls with a center detent. Thread length is 10mm, which is recommended for Spector® basses or any basses with knobs mounted through the body wood.

INCLUDED HARDWARE:

• One Concentric (stacked) potentiometer with:
  • 8mm / 6mm shaft diameter for concentric knobs

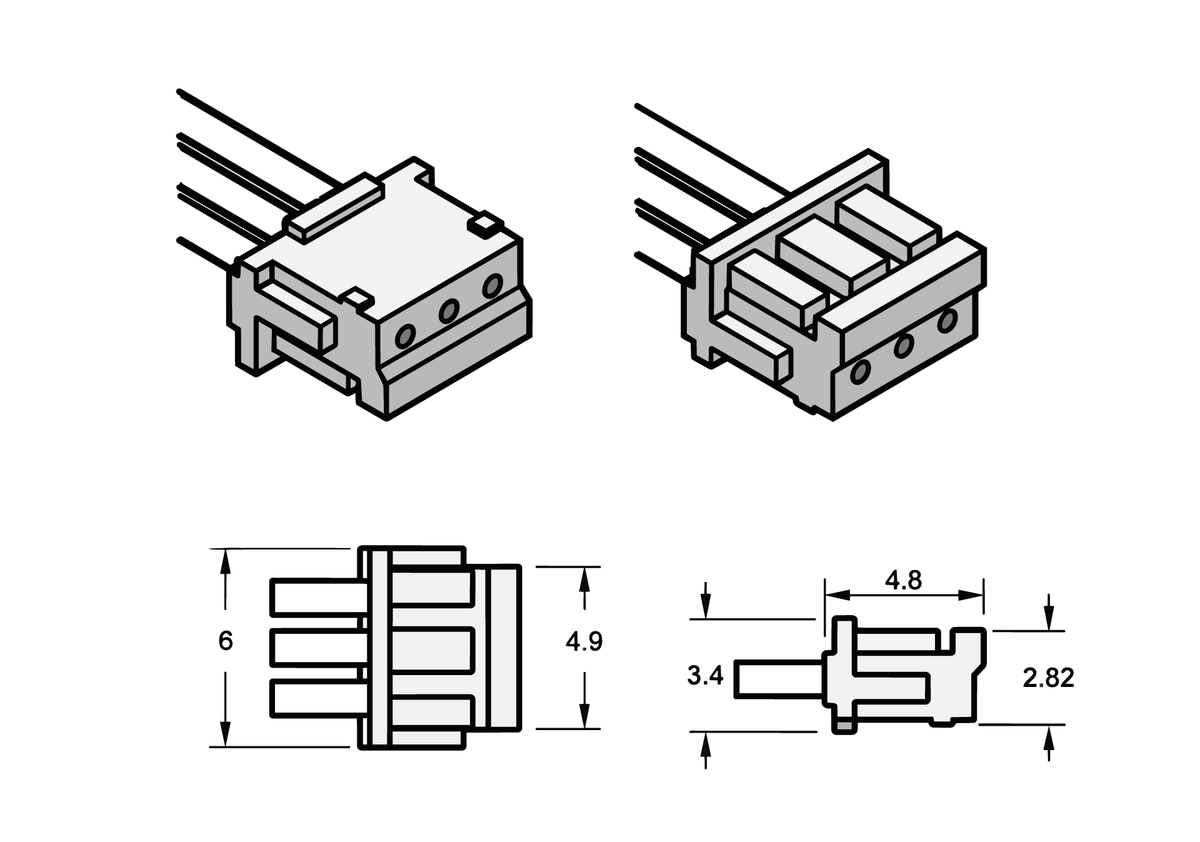

  • Two separate JST connectors
  • Washers and nut
  • M9x0.75 thread (requires mounting hole 9mm / 0.36" or greater)

IMPORTANT: This is a standalone item sold as a replacement part! LHZ preamps always ship with potentiometers as part of the kit.
