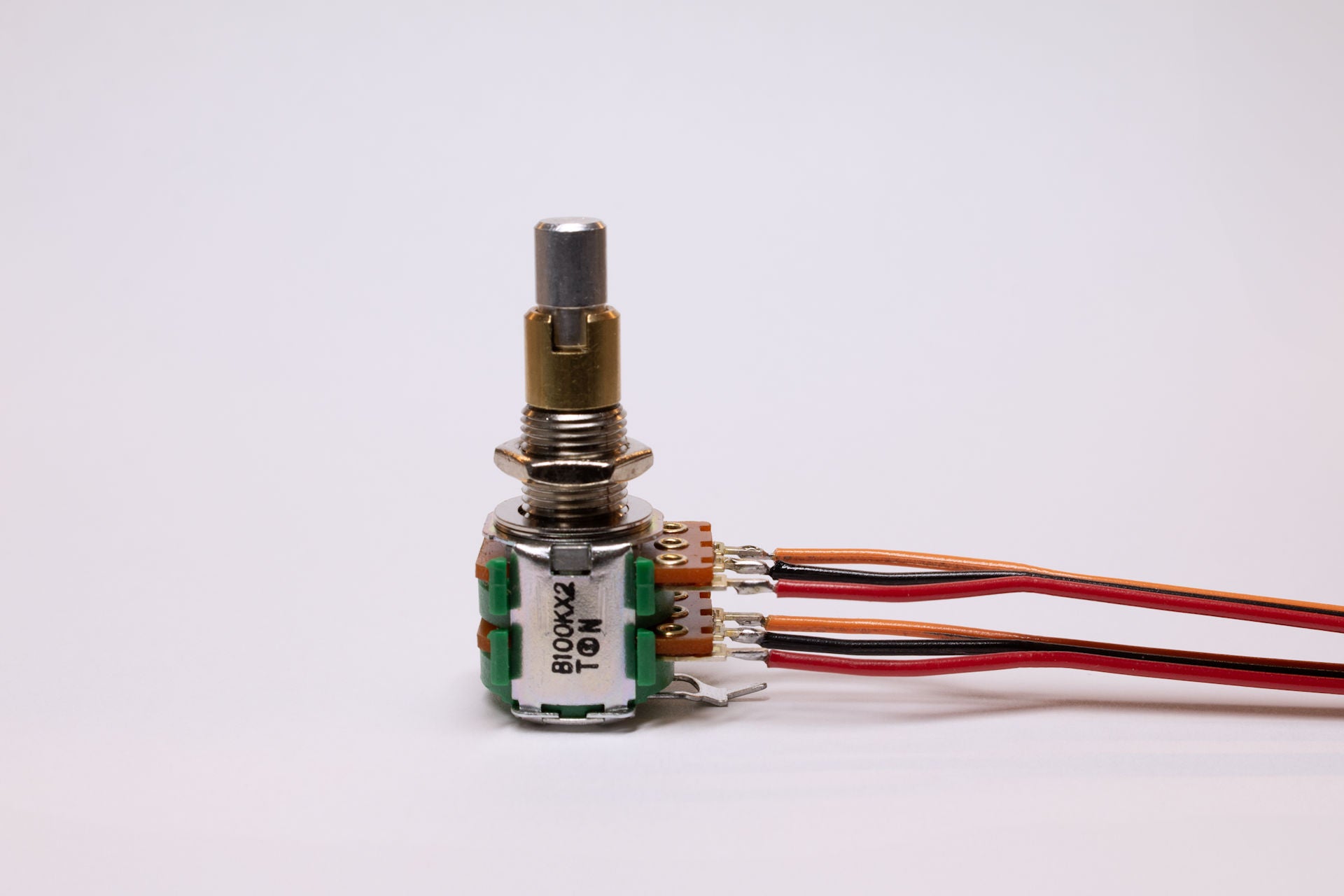

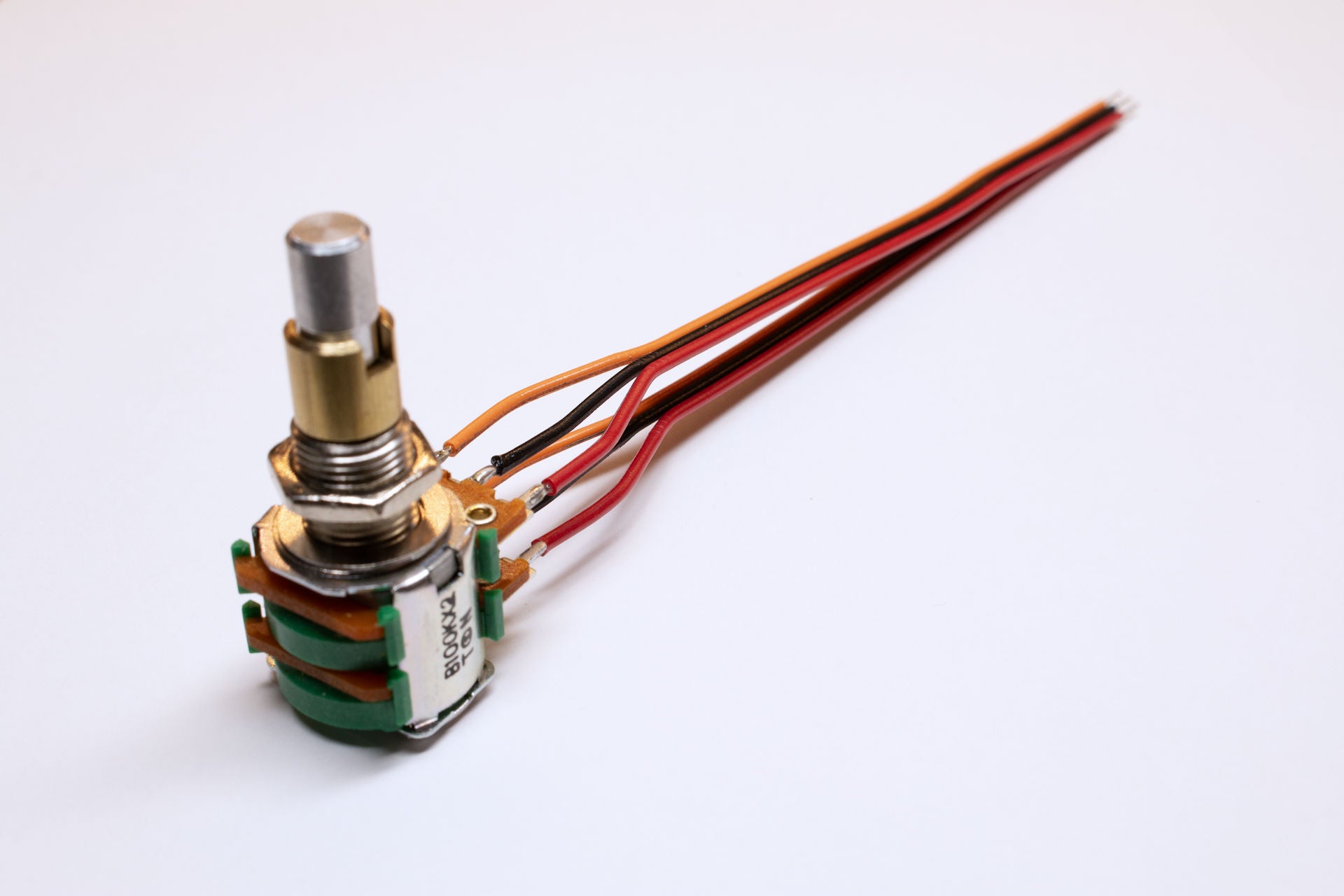

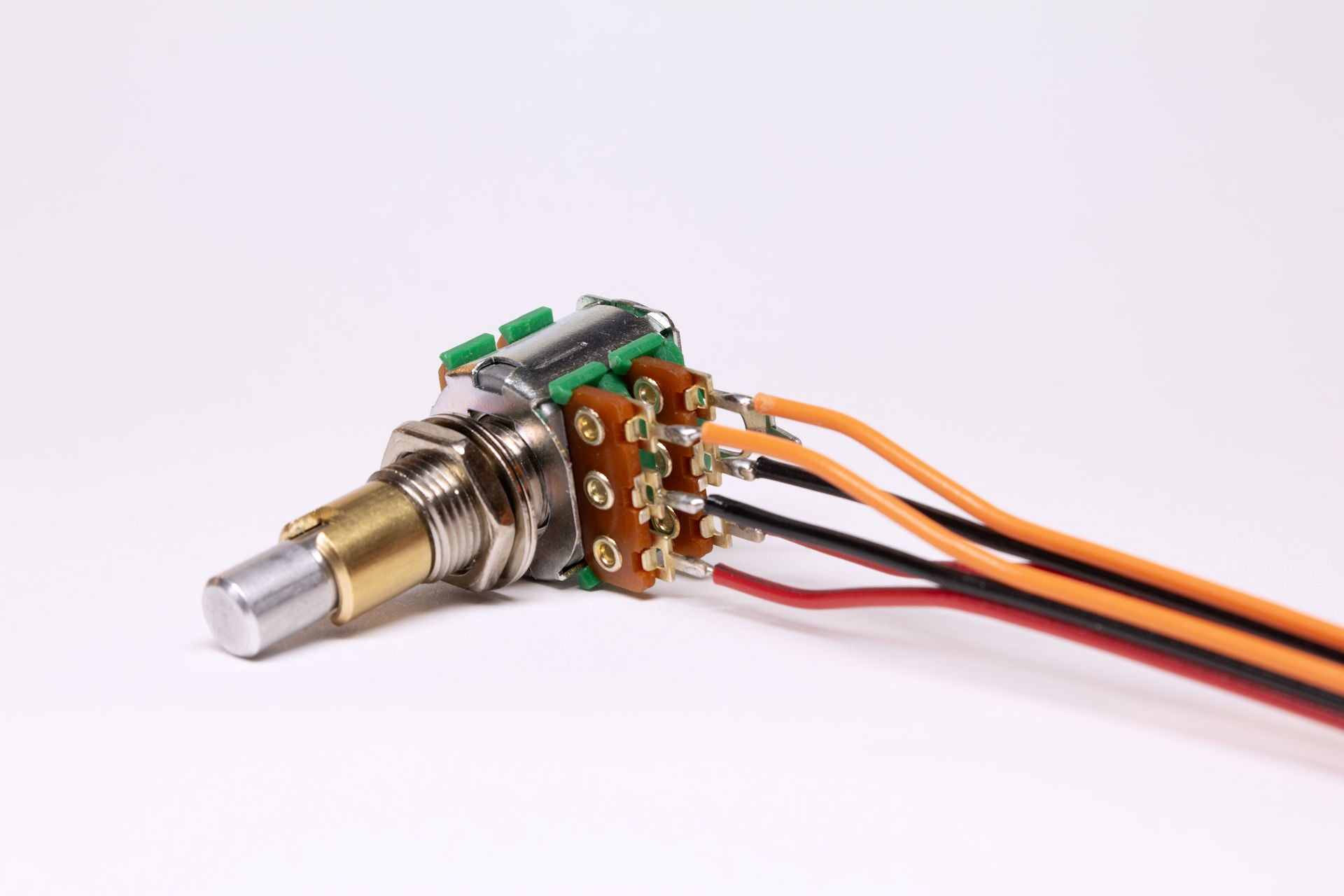

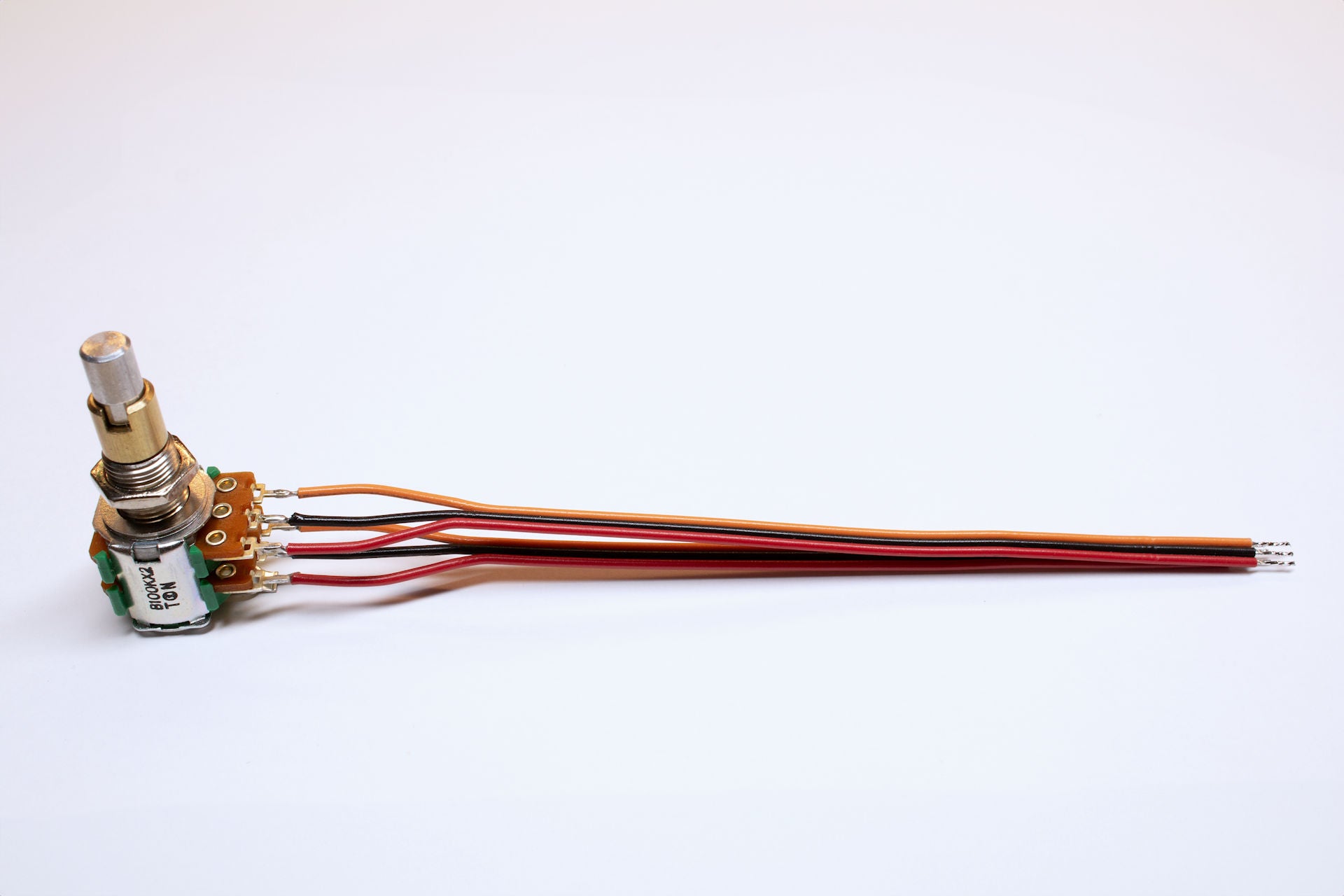

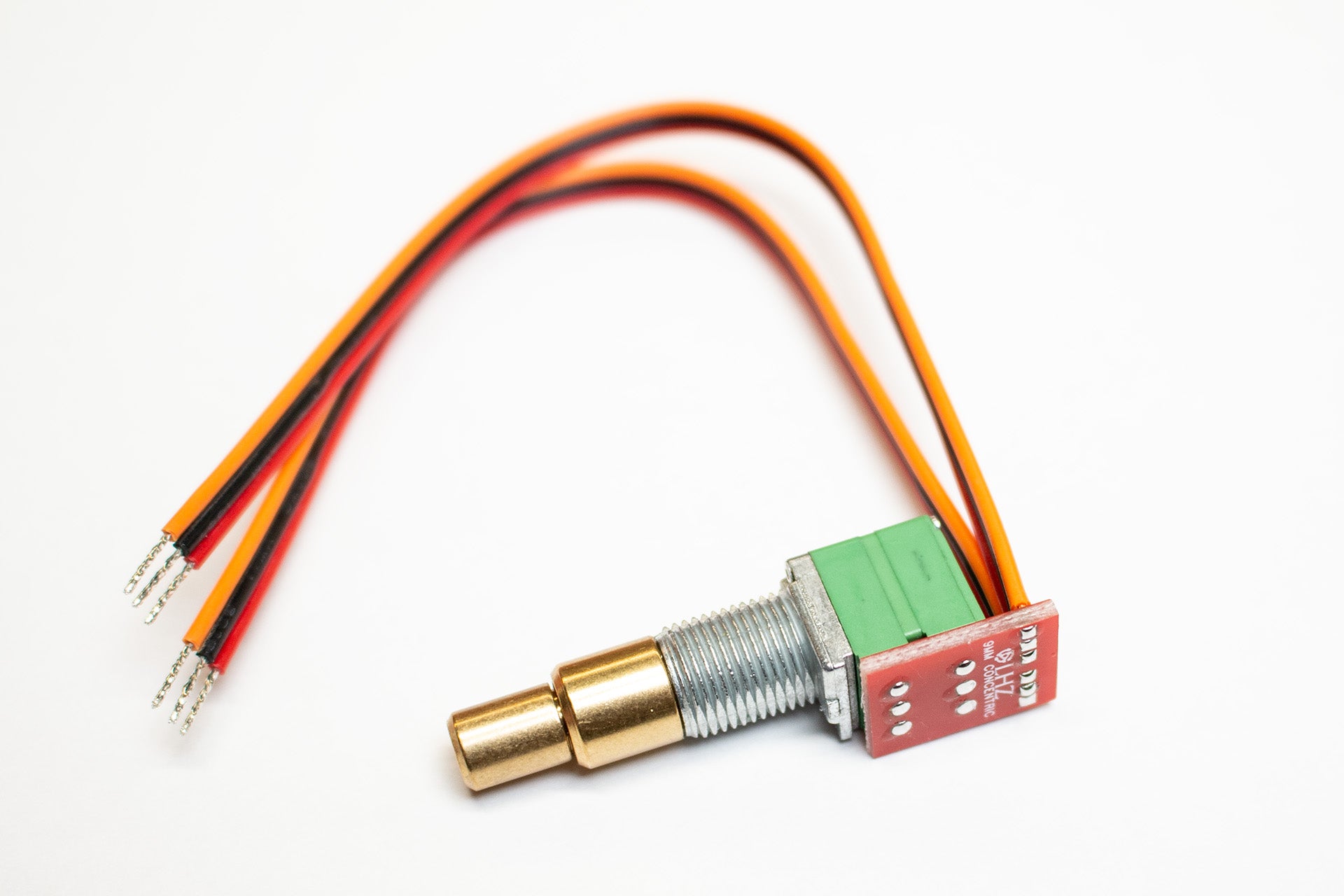

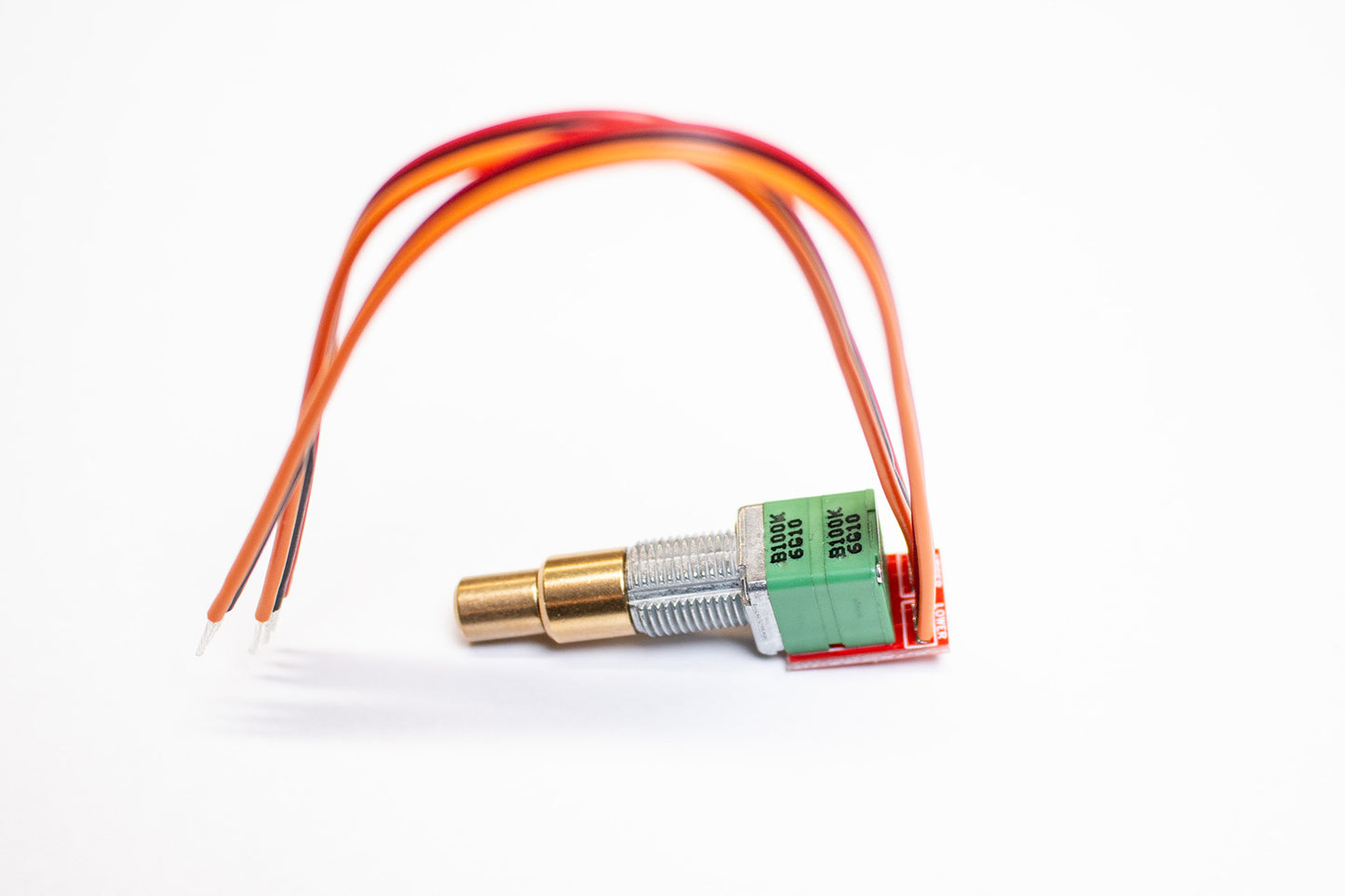

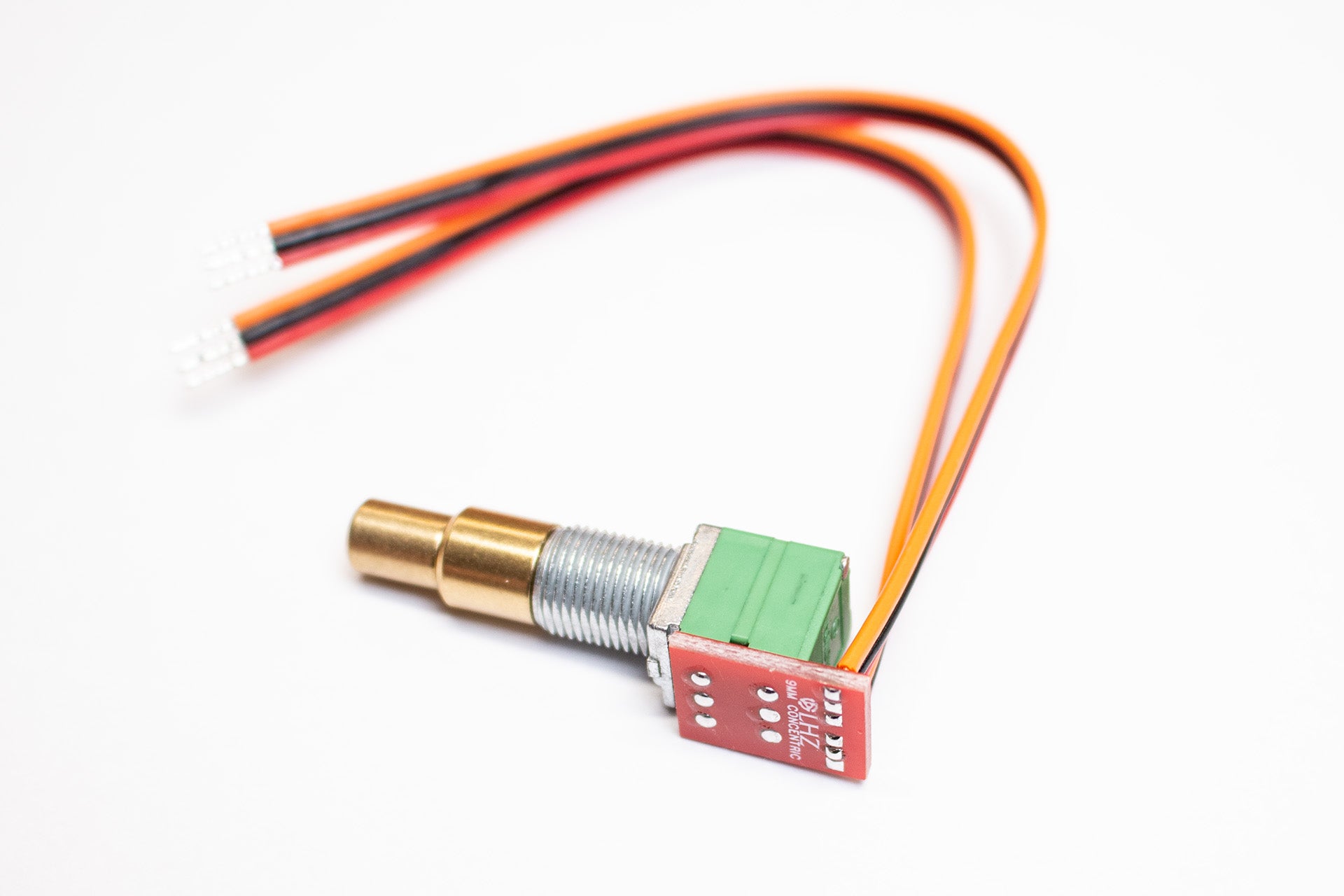

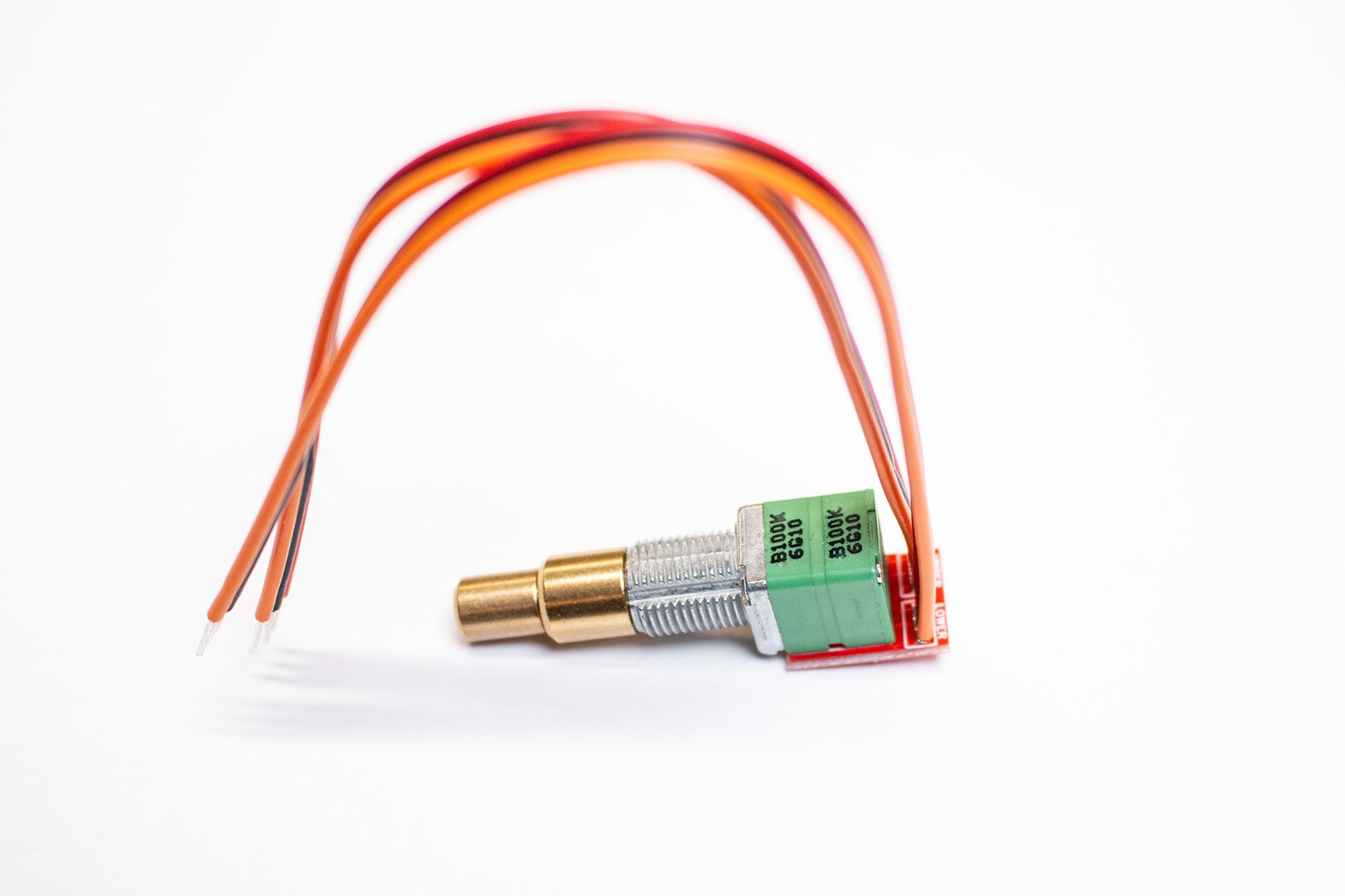

The LHZ-B100K-CP is a concentric (stacked) Bass & Treble potentiometer. This unit will replace the separate Bass & Treble pots on the LHZ preamp so a single mounting hole can be used.

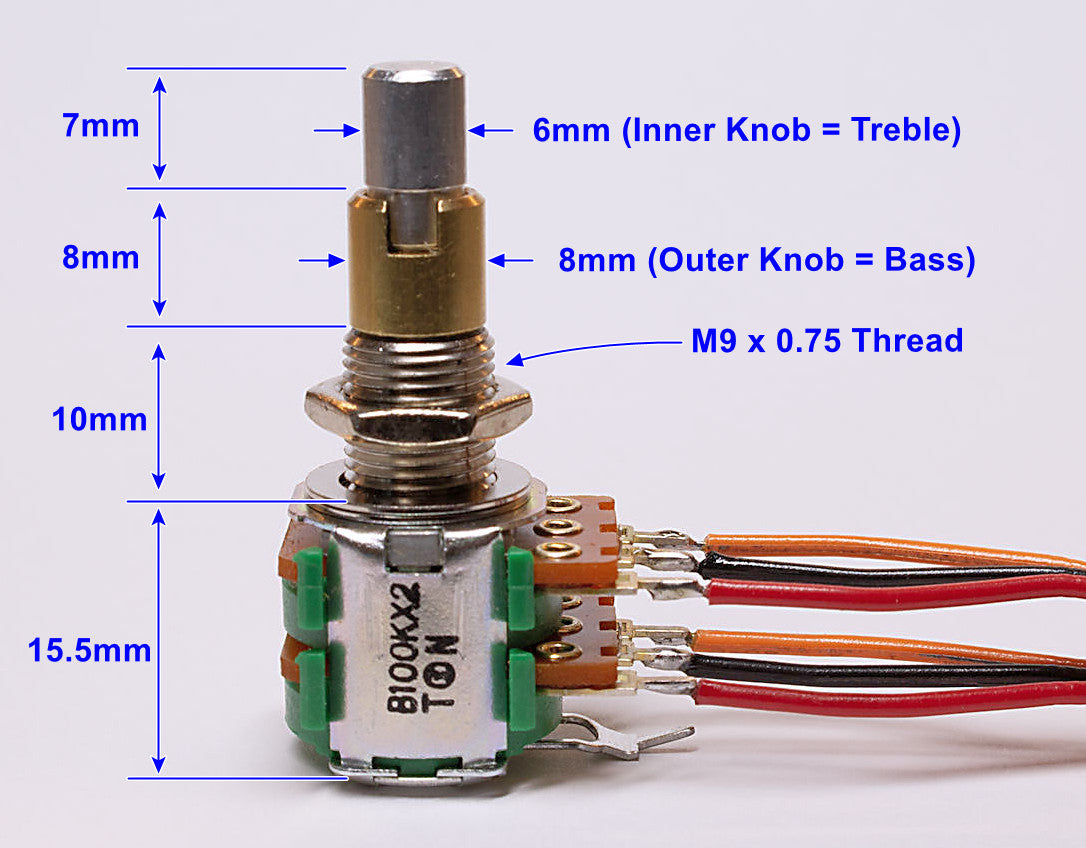

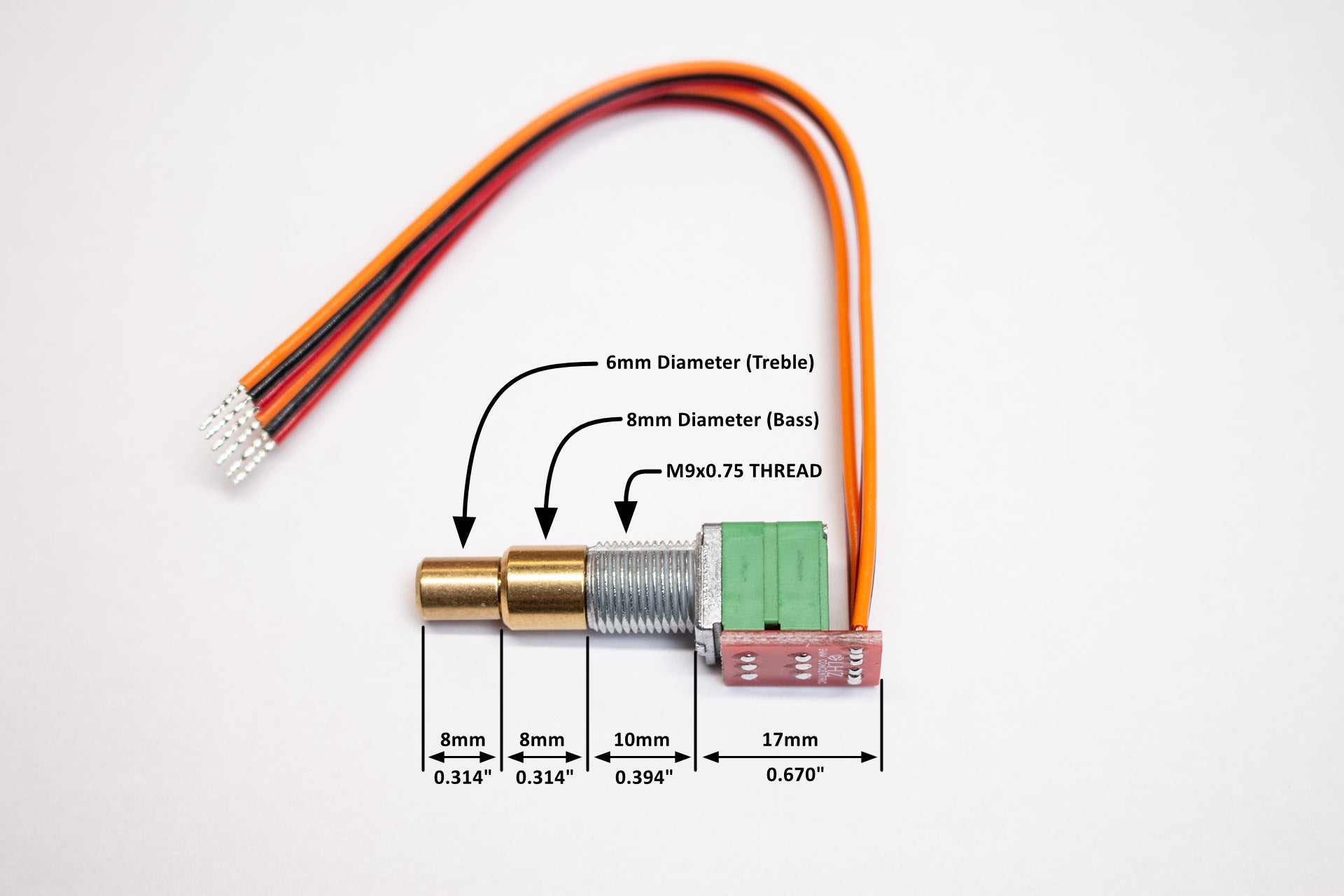

This potentiometer consists of two independent 100k Linear Taper (aka B100k) potentiometers with a center detent. Mounting threads are M9x0.75 and requires a mounting hole at least 9mm (or 0.36") or greater. Thread length is 10mm, which is recommended for Spector® basses.
IMPORTANT: This is a standalone item sold as a replacement part! To order an LHZ-04 preamp with a Concentric pot already wired to the board, simply select the "LHZ-04 HazLabs Preamp Clone (Concentric EQ Pot)" from the store when ordering.
